MASTER PLANNING + AERIAL PHOTOGRAMMETRY SCANNING
australia's leading, and most experienced architectural 3d visualisation, cinematic 3d film, 3d animation and retail 3d visionary specialists, and as such we are proud to present a select range of our 'freshest' and 'tastiest' ECONOMY + PRO LEVEL - MASTER PLAN 3d visualisations . . . yum !
MASTERPLAN : 3D MODELING
We start the process by . . .
taking a Google Earth image and superimposing it over a flat ground plane
we then build or bring in the architects block models
we then create a series of test renders which according to budget may be enough to explain the masterplan intent

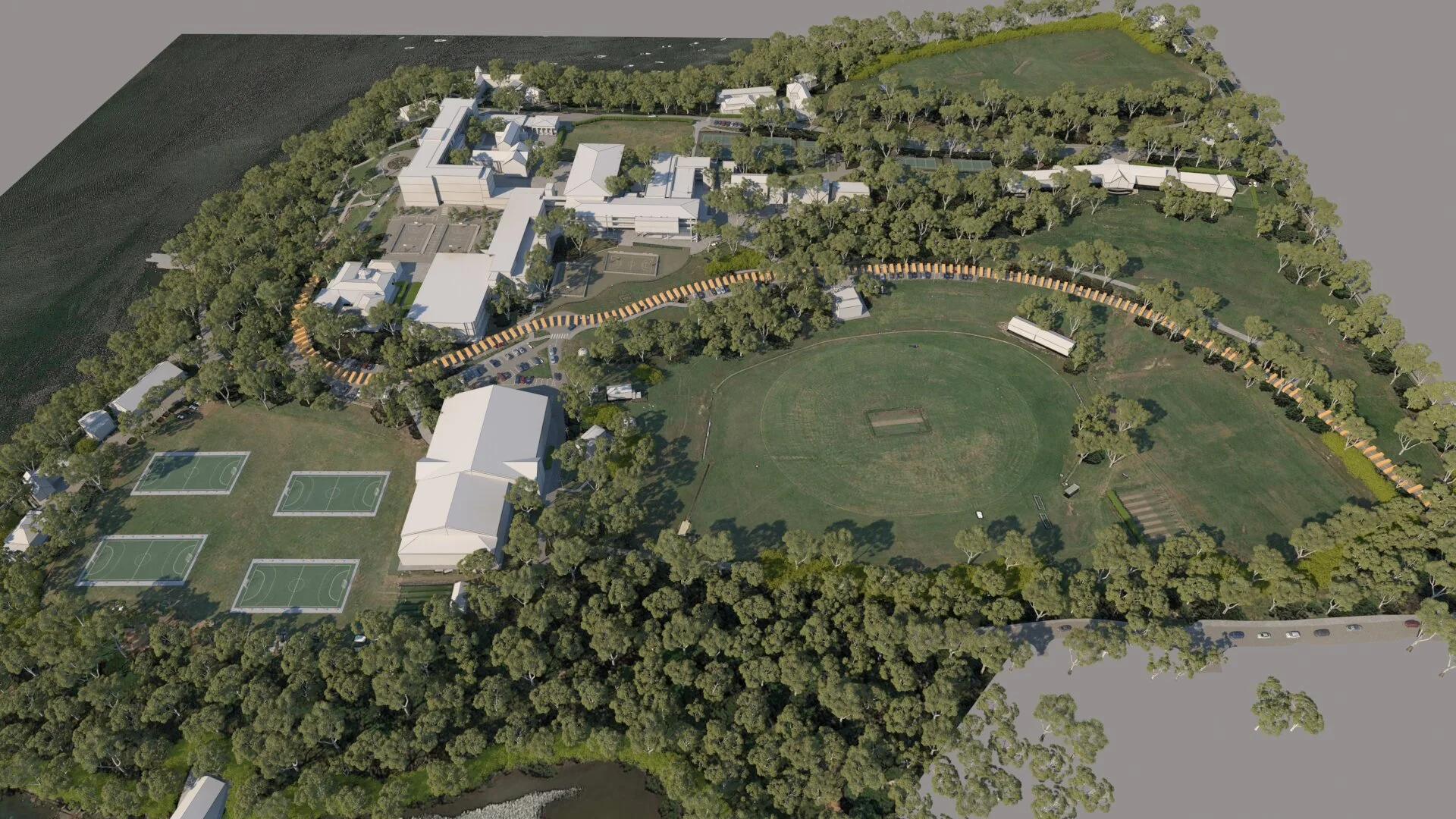

if budget dictates we then populate the Google Earth image with medium resolution trees, plants + cars + people
ECONOMY BUDGET ANIMATION

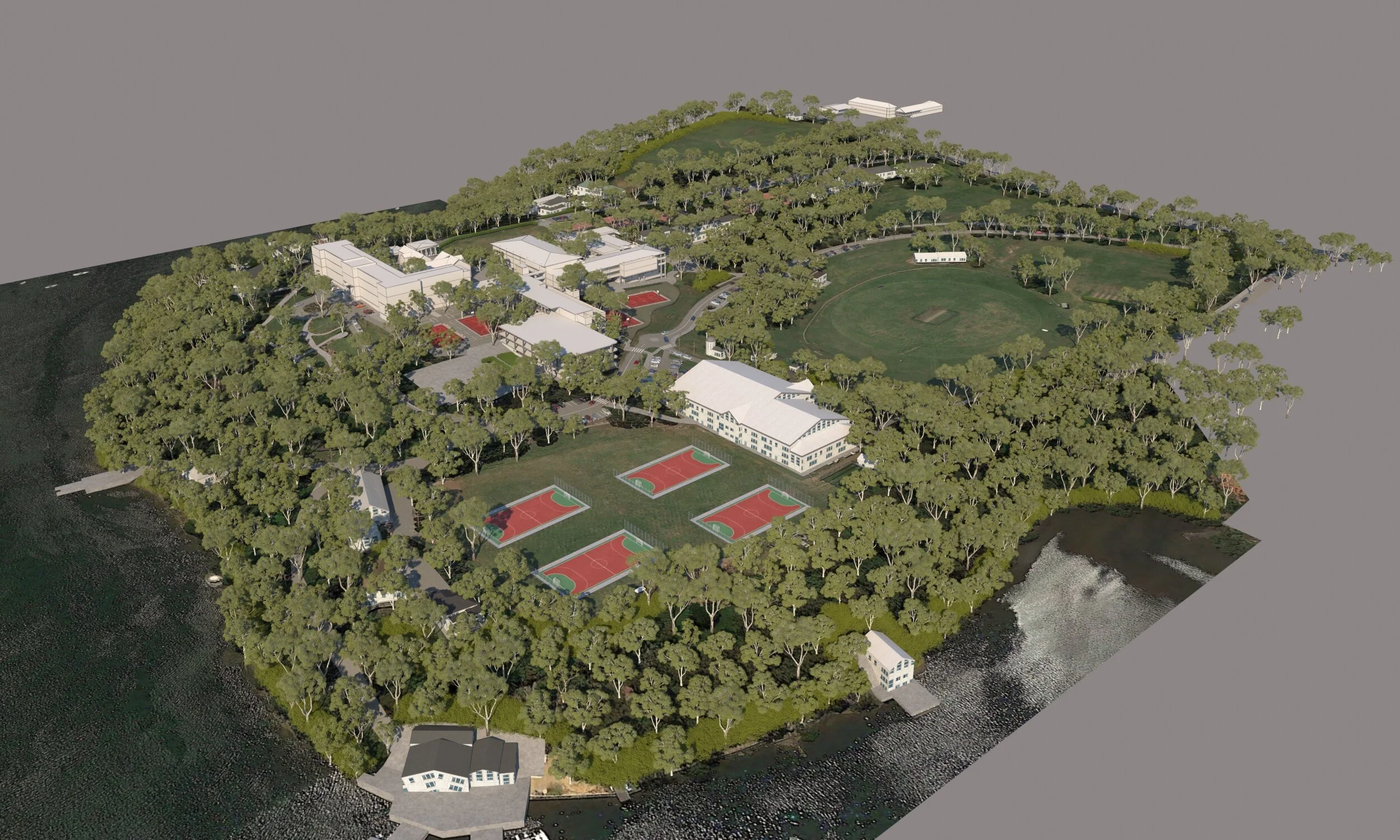

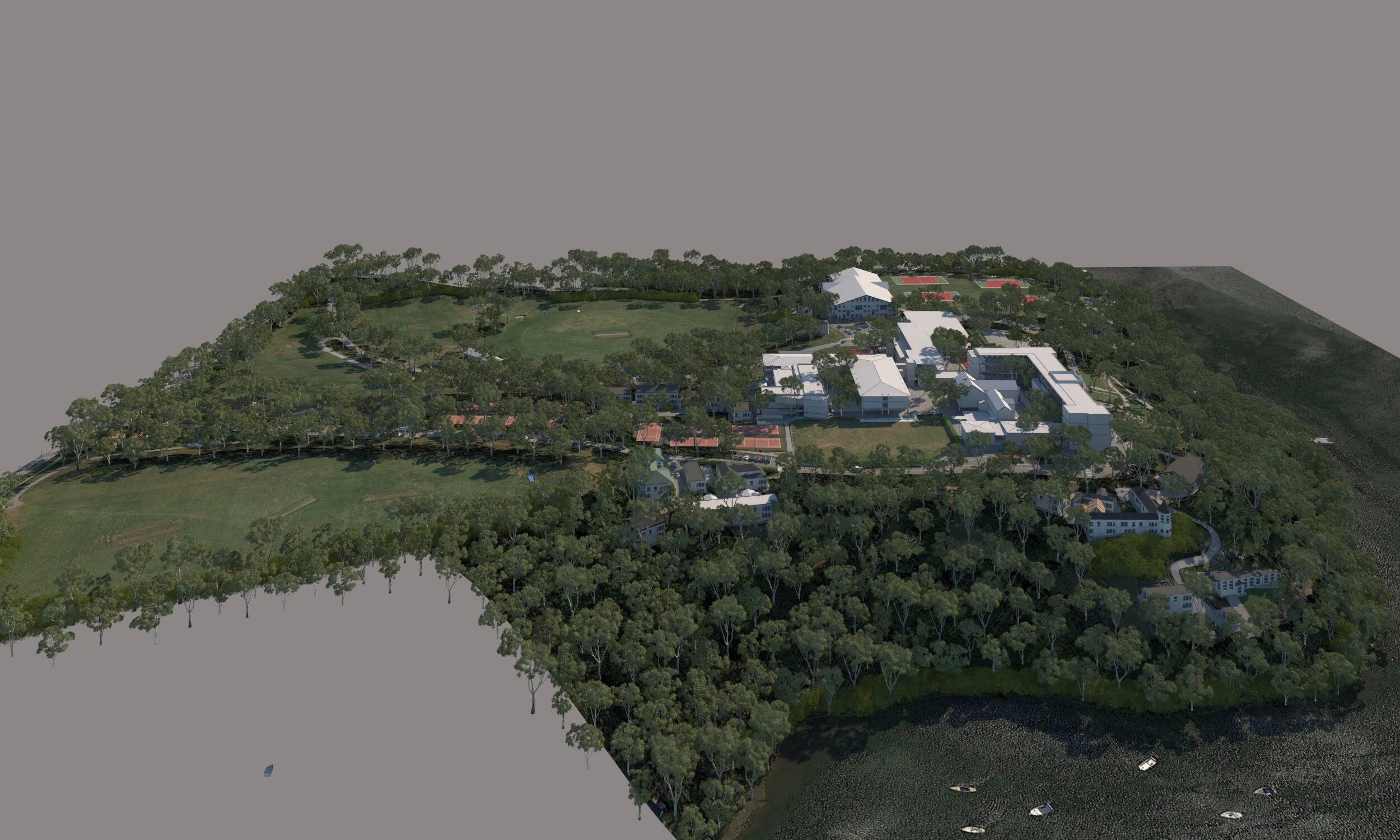

The above masterplan model is then used to create a low budget cost effective master planning animation . . . in this case to show a 20 year vision for the elite St Ignatius College Sydney complete with motion graphics flags + tags
General inclusions are . . .
Google Earth image placed on the ground plane
A series of indicative 3d massing buildings placed around the site
The entire site is populated with 3d trees + cars to add a level of realism
Motion graphics flags + tags
Basic video edit + titles + generic soundtrack
MASTERPLAN : AERIAL ‘PHOTOGRAMMETRY’ SCANNNING

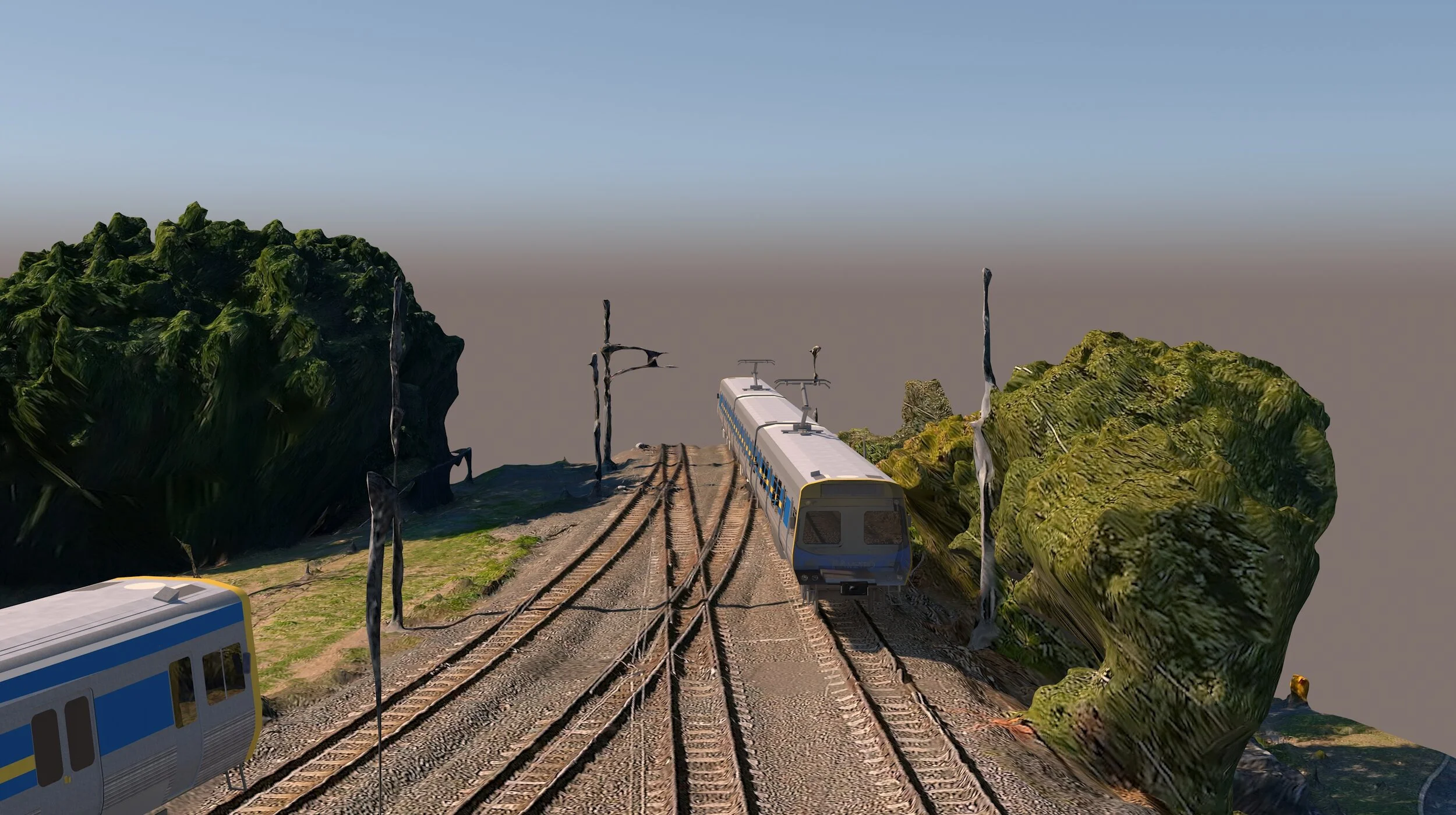

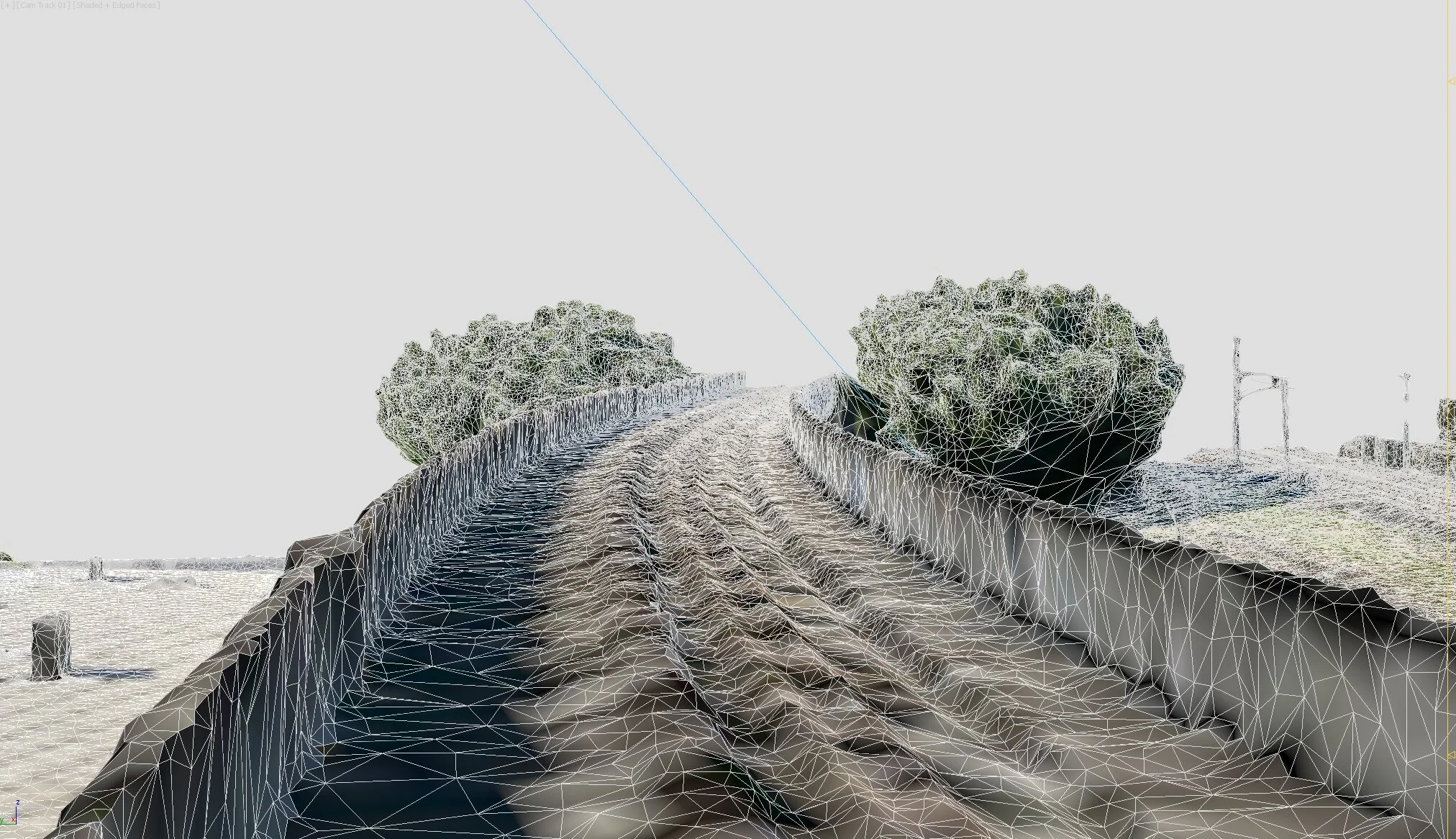

For the utmost realism and accuracy Atomic 3D are also are able to produce the highest quality 3d photogrammetry aerial scans of entire streets or suburbs . . . which the mesh image for Metro Trains demonstrates below ; it shows the level of ‘digital’ points that are scanned, digitised and converted into a 3d model, with super high resolution texture maps ready for us to remove and repalce with new 3d geometry

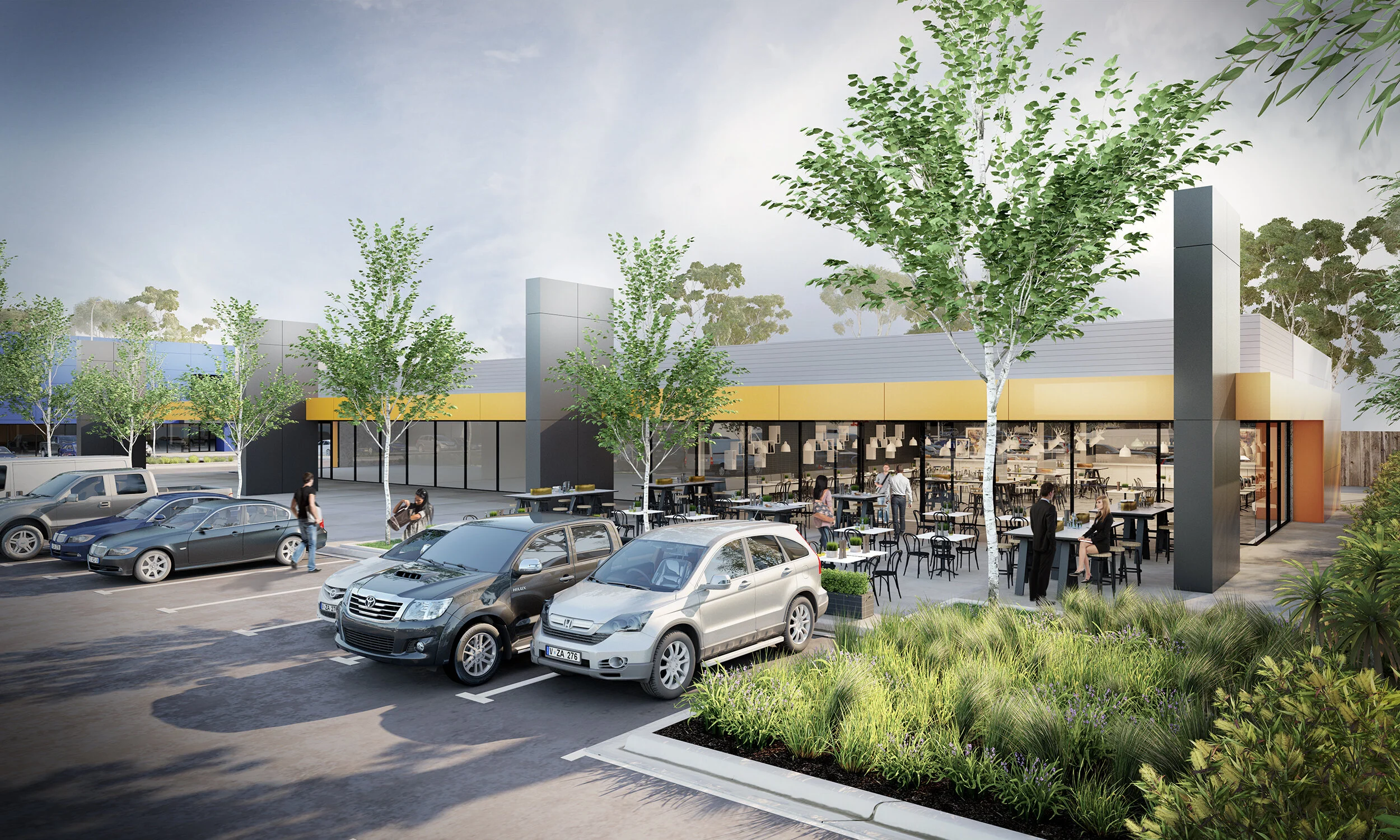

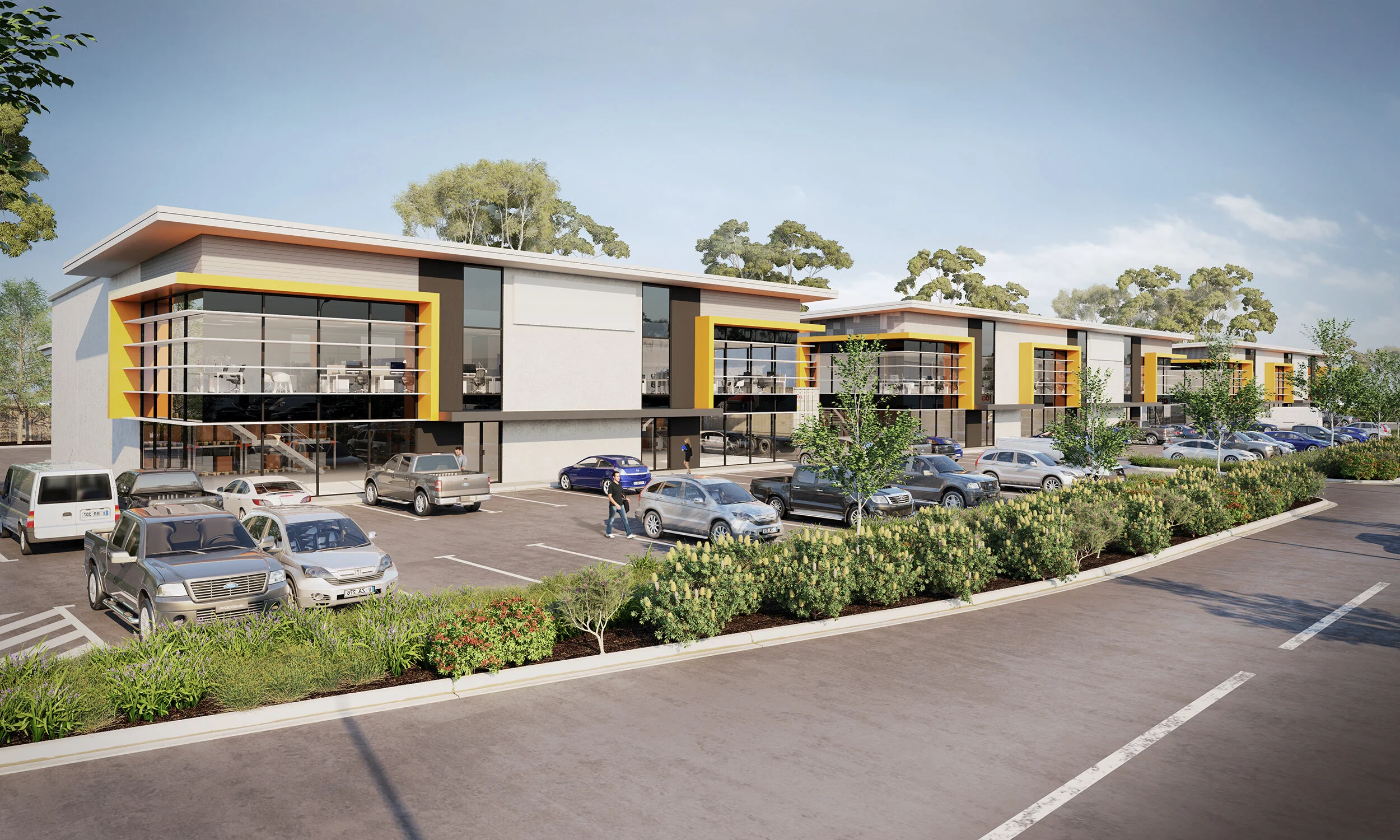

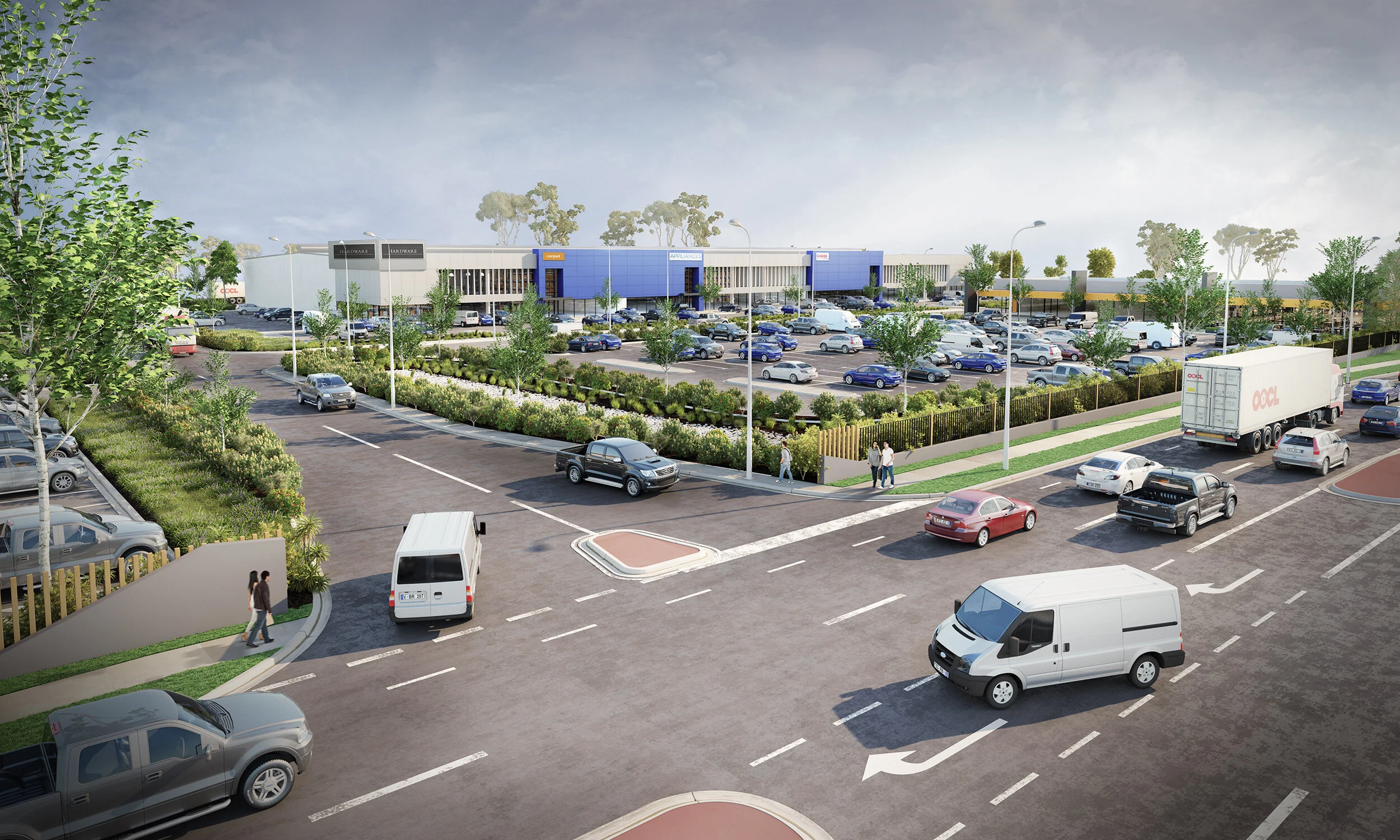

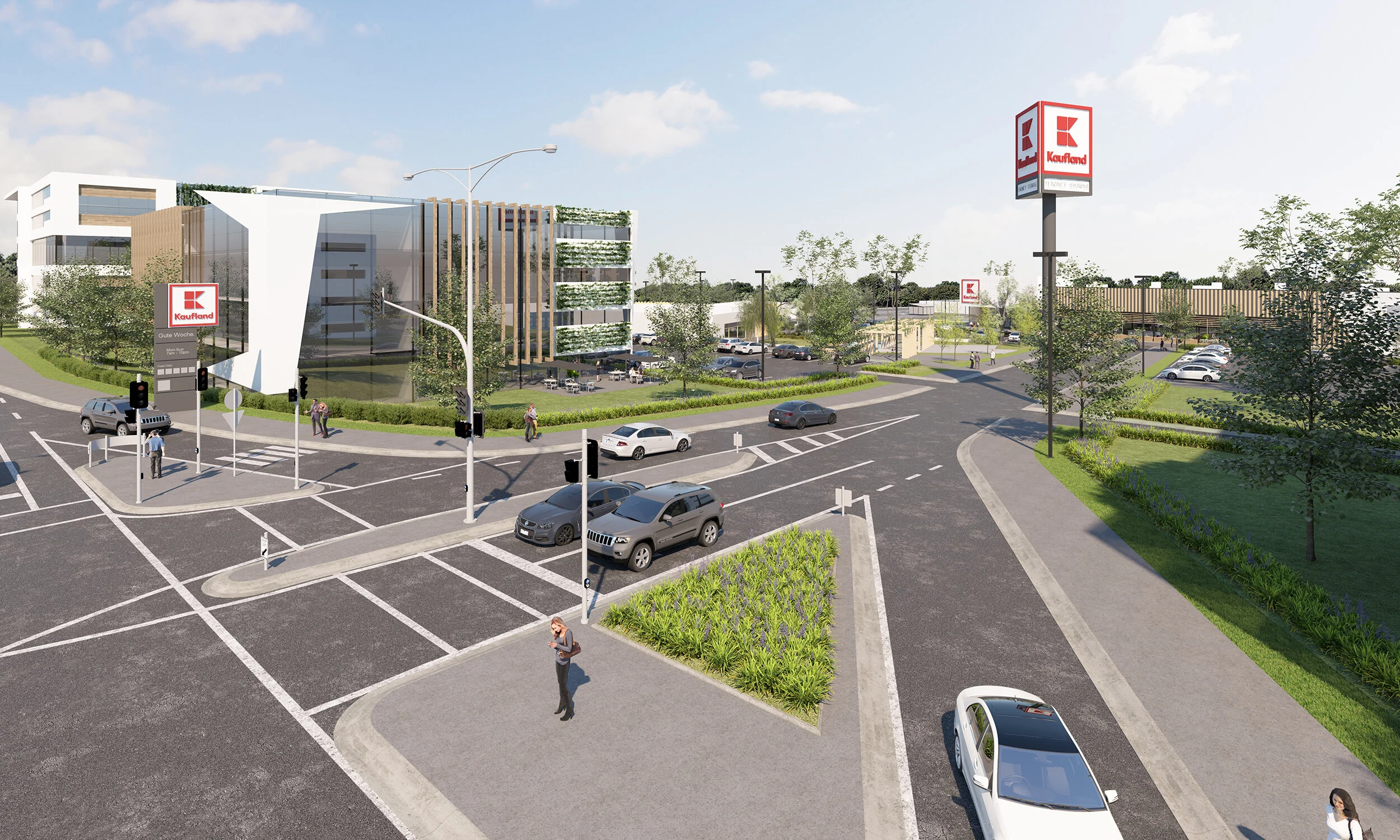

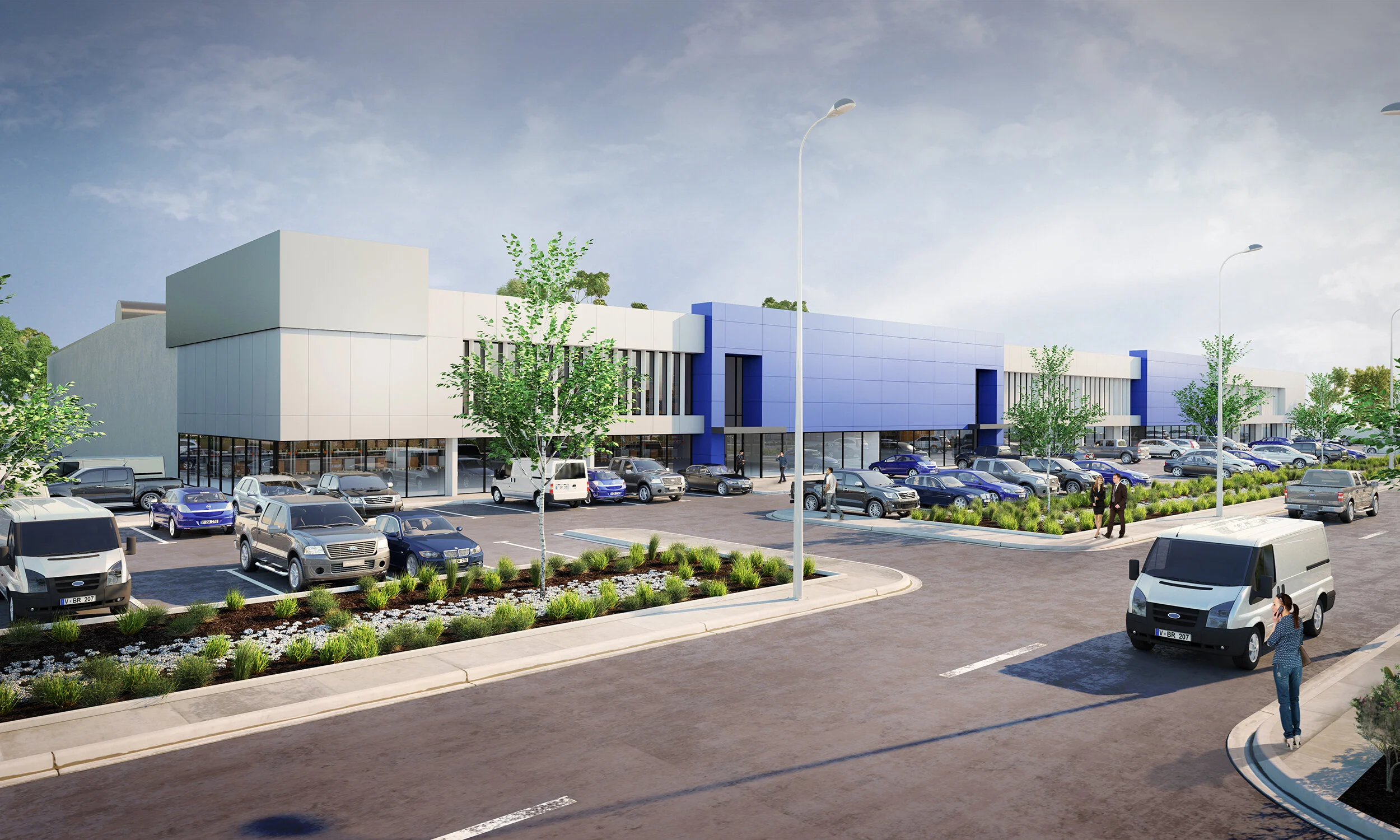

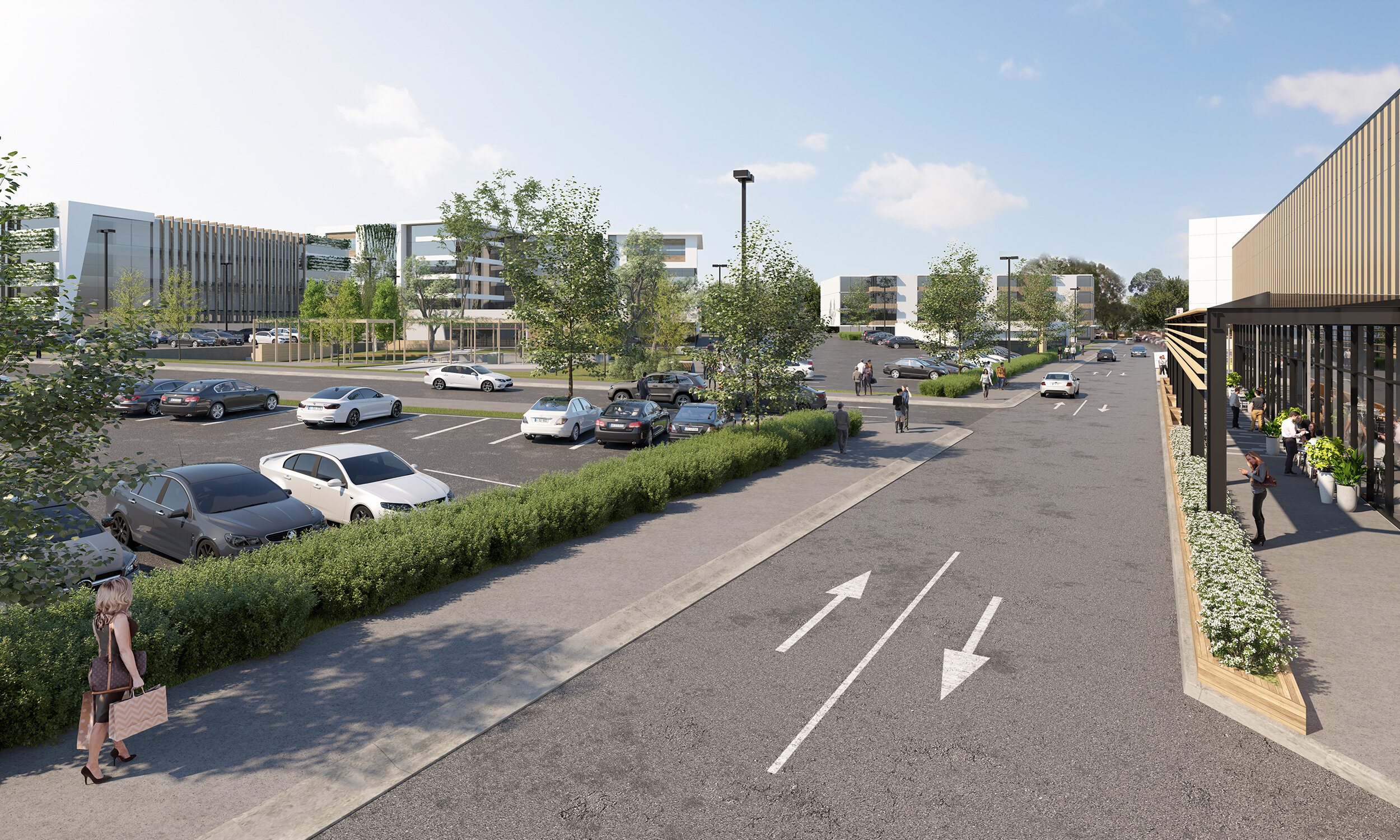

MASTER PLAN : PRO BUDGET DEVELOPED PLANNING RENDERS
Any masterplan project model can be directly used forplanning or marketing purposes . . . where we add a significant amount of additional detail and design to bring the original planning project to life
